Track Dolly Motor Kit
$5,749.00
Motorizes virtually any track dolly or wheel troughs

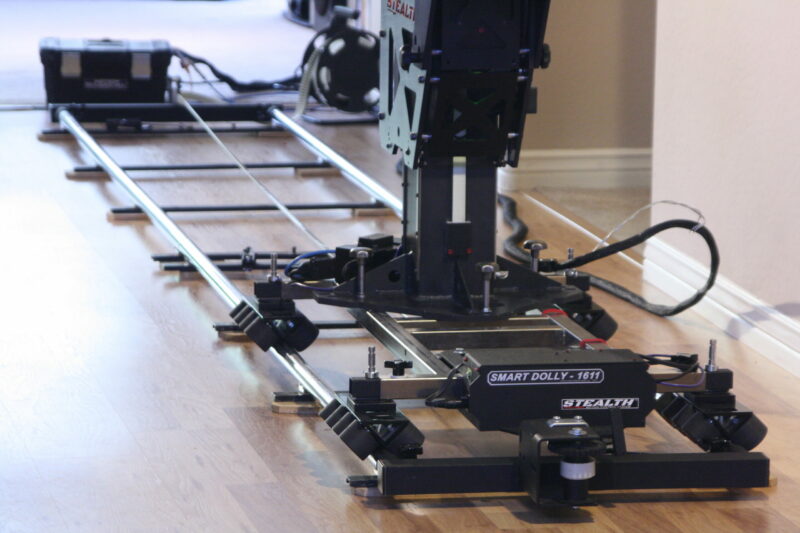

The Track Dolly Motor Kit can be used to motorize virtually any track dolly or skateboard/centipede wheels, making a manual track dolly recordable and repeatable. The patent-pending design features strong but quiet servo-operated horizontal camera movement. Operate with the Joystick or 2-Axis Hand Wheels and make it perfectly repeatable with the Controller and Stealth Recording Software. The kit can be clamped to the Stealth Dolly or your own dolly – add the Lift Column for repeatable vertical and horizontal camera movement.
Description
HIGHLIGHTS

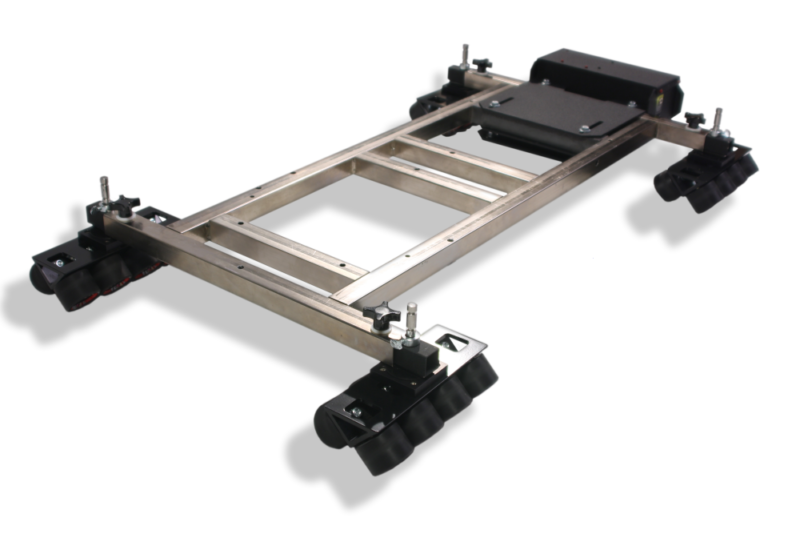

- Clamp to dolly frame or wheel troughs, or use with Stealth dolly frame (not included)
- Compatible with industry standard track (24.5″ wide)

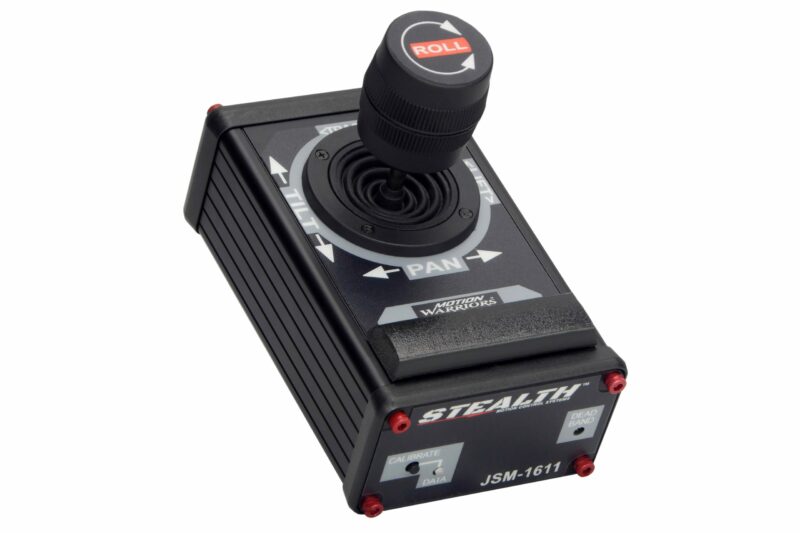

- Operate with handwheels (single-axis joystick/controller coming soon)
- Recordable and repeatable with Controller and Stealth Recording Software
- Works on straight track (adapter for curved track coming soon)
SPECIFICATIONS
- Clamps onto dolly frames up to 1.5″ thick with bolts provided
- Dimensions:
- Motor housing: 13.4 x 17.7 x 7″ / 35 x 45 x 18 cm
- End bracket (tensioning end): 27 x 10.5 x 5″ / 68.6 x 26.7 x 12.7 cm
- End bracket (clamp end): 27 x 7.5 x 5″ / 68.6 x 19 x 12.7 cm
- Cog belt storage reel: 14.6 x 9.8 x 8” / 37 x 25 x 20 cm
IN THE BOX

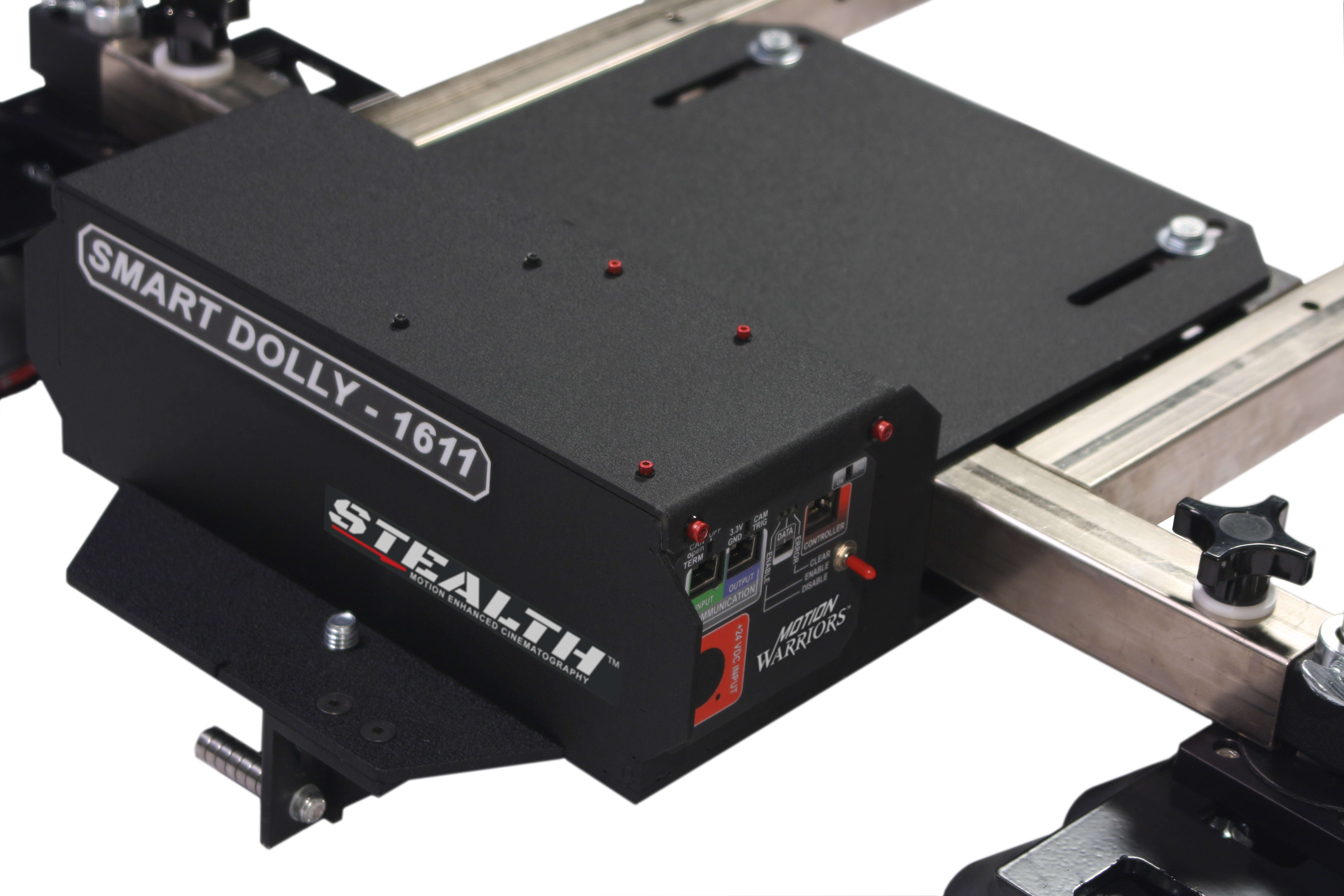

- Motor housing
- Track end brackets (2)
- 50 ft / 15 m cog belt and storage reel (other lengths available)
